CKM7140/7150/7163/7180 Programma Controlled Superficies Molendire Machina Fabricatores, Societas

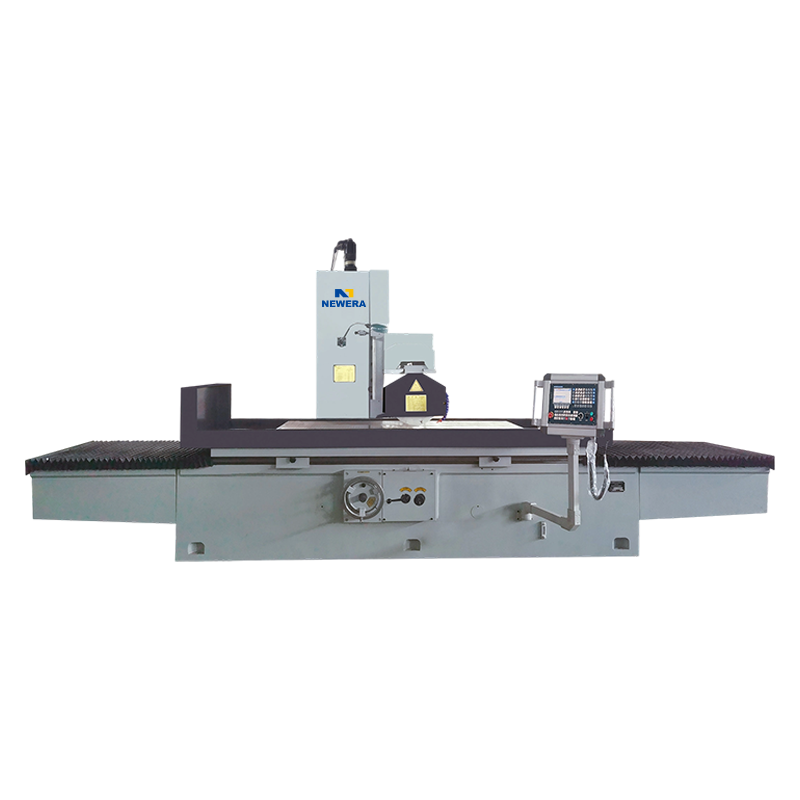

CKM7140/7150/7163/7180 Programma Controlled Superficies Molendire Machina

Nobis continge

CNC EDM nobis Conventional EDM: Imperium, Cura, Setup, ac Pretium Differentiae -2026 -11-04
Duae machinae morientes mersae iuxta eandem tabulam sedere possunt, eadem generante scrinio et simili vestigio, et adhuc in usu quotidiano instrumenta prorsus diversa sunt. Discrimen decretorium...
How Does EDM Machining Work? Scintilla Gap, Dielectric et Physicorum Dimittite -2026 -10-28
A 0,3 mm intra angulum in fundo 58 HRC H13 insertum mori punctum est ubi milling optionis esse desinit. Radius angulus minor est omni dromone practico, materia carbidam extremum in uno saltu int...
CNC Wire Cut EDM Machina: Specs, Sumptus ac Rector pro Mold officinae -2026 -10-21
D2 mor- tuntur indurata, ferrum carbide, extrusio moriuntur inserta — semel hae partes exeunt de fornace ad 58 ad 62 HRC, super molendo et stridor tardus fit et pretiosus. A CNC filum incisum ED...
EDM technologia: Applications, Electio Criteria, ac Gubernatio Practica -2026 -10-20
Picture a hardened H13 mold insert with a 0.8 mm deep rib and a square internal corner that no end mill can reach. The cavity has already been milled, but the last details need a process that cu...
EDM solvendi Machining Explicata: Processus, Tooling et Machina Electio -2026 -10-14
A 0,6 mm intra angulum in forma durata H13 inserta copiae molendini minuti in 52 HRC chalybe, et hoc est officium instrumenti-fractionis magis declinare tabernae. EDM emissi machinationem in cir...

Model	Unitas	CKM7140	CKM7150	CKM7163	CKM7180-16	CKM7180-20
Mensa magnitudine (L W)	mm	1000×400	1250×500	1250×630	1600×800	2000×800
Motus longitudinalis plaga	mm	1100	1350	1350	1700	2100
Distantiae a centro rotae ad mensam	mm	575	780	780	800	800
Verticalis feed handwheel motus per vices	mm	1	1	1	1	1
Verticalis feed handwheel motus per cell	mm	0.01	0.01 (0.005)	0.01 (0.005)	0.01 (0.005)	0.01 (0.005)
Maxime plaga motus lateralis	mm	450	550	680	850	850
Motus transversus celeritas intermissa	m/min	0.5-3	0.5-3	0.5-3	0.5-3	0.5-3
Velocitas longitudinalis	m/min	3-30	3-30	3-30	3-30	3-30
Harena rota hastile celeritate	r/min	1440	1440	1440	1440	1440
Mole rota mole	mm	Φ350× Φ127	Φ400×40×Φ127	Φ400×40×Φ127	Φ400×40×Φ127	Φ400×40×Φ127
Molendum caput motricium virtutis	kw	7.5	7.5	7.5	11	11
Celeri tollere motricium virtutis stridor capitis	kw	1.5	1.5	1.5	1.5	1.5
Oleum sentinam motricium virtutis	kw	3	4	5.5	7.5	7.5
Maximum onus vitae mensam	kg	800	1000	1380	1600	1600
Net pondus	kg	4200	5500	7000	8000	9500
Parallelismus superficiei machined ad superficiem basin	mm	1000:0.015	1000:0.015	1000:0.015	1000:0.015	1000:0.015
Superficiem asperitatem	μm	Ra0.63	Ra0.63	Ra0.63	Ra0.63	Ra0.63
Altiore magnitudine	mm	2700× 1640×2100	3000×1900×2400	3000×1950×2400	4500×2900×2800	5600×2900×2800
