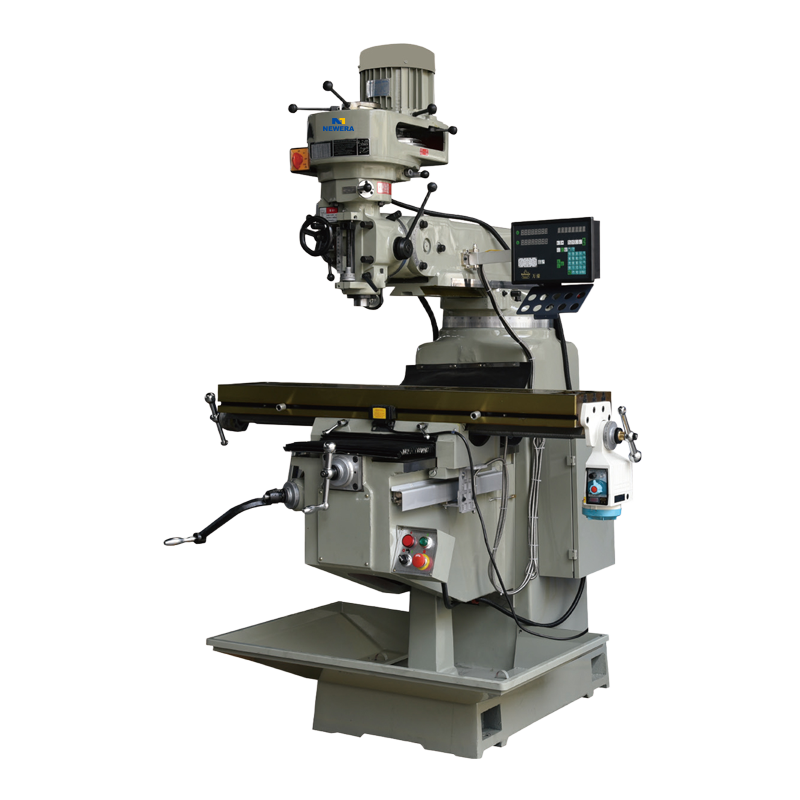

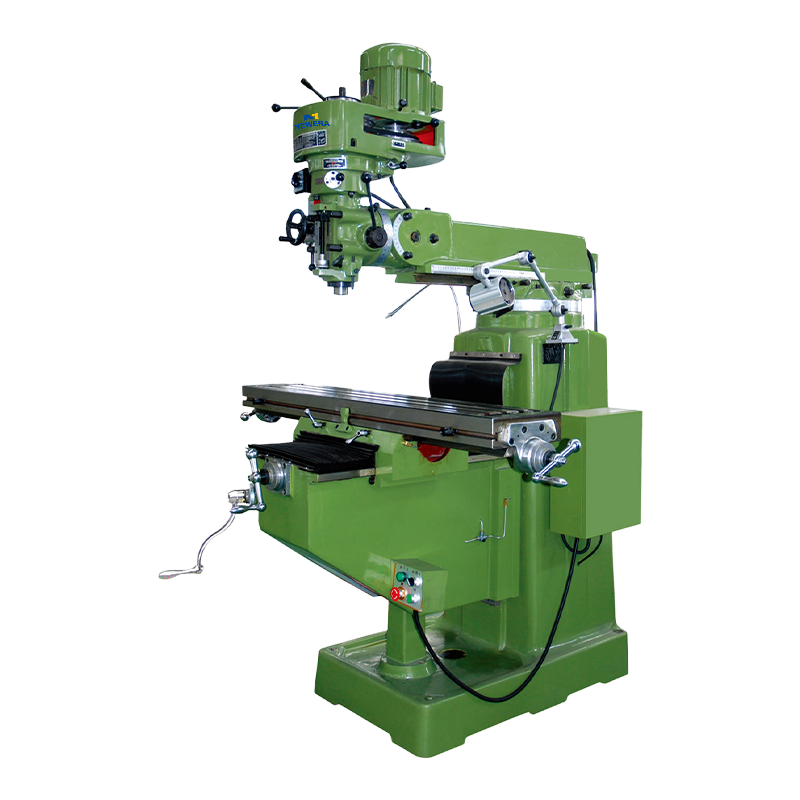

3M/4M/5M/6M Turret genus machinae milling Fabricatores, Societas

CNC EDM nobis Conventional EDM: Imperium, Cura, Setup, ac Pretium Differentiae -2026 -11-04

Duae machinae morientes mersae iuxta eandem tabulam sedere possunt, eadem generante scrinio et simili vestigio, et adhuc in usu quotidiano instrumenta prorsus diversa sunt. Discrimen decretorium...

How Does EDM Machining Work? Scintilla Gap, Dielectric et Physicorum Dimittite -2026 -10-28

A 0,3 mm intra angulum in fundo 58 HRC H13 insertum mori punctum est ubi milling optionis esse desinit. Radius angulus minor est omni dromone practico, materia carbidam extremum in uno saltu int...

CNC Wire Cut EDM Machina: Specs, Sumptus ac Rector pro Mold officinae -2026 -10-21

D2 mor- tuntur indurata, ferrum carbide, extrusio moriuntur inserta — semel hae partes exeunt de fornace ad 58 ad 62 HRC, super molendo et stridor tardus fit et pretiosus. A CNC filum incisum ED...

EDM technologia: Applications, Electio Criteria, ac Gubernatio Practica -2026 -10-20

Picture a hardened H13 mold insert with a 0.8 mm deep rib and a square internal corner that no end mill can reach. The cavity has already been milled, but the last details need a process that cu...

EDM solvendi Machining Explicata: Processus, Tooling et Machina Electio -2026 -10-14

A 0,6 mm intra angulum in forma durata H13 inserta copiae molendini minuti in 52 HRC chalybe, et hoc est officium instrumenti-fractionis magis declinare tabernae. EDM emissi machinationem in cir...

Model	Unitas	3M	4M	5M	6M
Fusum Taper		NST # XXX vel R8		NST#40	NST#40
Rotate celeritas fusi	rpm	16: 66-4540(50Hz);		16: 66-5440	10: 80-2850(50Hz)
Fusum caput dextra laevaque angulus rotationis		90		90	90
Fusum Quill itinerantur	mm	127		132	132
Plaga telescopiorum boom	mm	360		500	550
Spatium inter Fusum nasum et operabilium	mm	0-428		0-530	0-580
Distantiae a centro ad colum et ad ductor verticalis viam	mm	45		45
Distantiae a centro ad vertical guideway fusum		190-685		170-720	172-720
Celeritas fusi Auto feed (per circulo)	mm	0.4/0.08/0.15		0.4/0.08/0.15	0.4/0.08/0.15
Mensa Size	mm	254-1270		254×1370	305×1370
Iter longitudinale	mm	800(740 cum auto pascens)		900	785
Cross Travel	mm	380		408	405
Vertical Travle	mm	370		390	500
T socors (magnum numerum)	mm	3×16×65		3×16×75	3×16×75
Fusum Motor	HP	3		5(1/2)	5(1/2)
Lubricate System		Manual oleum saturitatem		lubricatio manualis	lubricatio manualis
Net pondus	kgs	1200	1300	1500	1800
Altiore magnitudine	mm	1700× 1730×2200		1800× 1830×2350	1800×1900×2400
