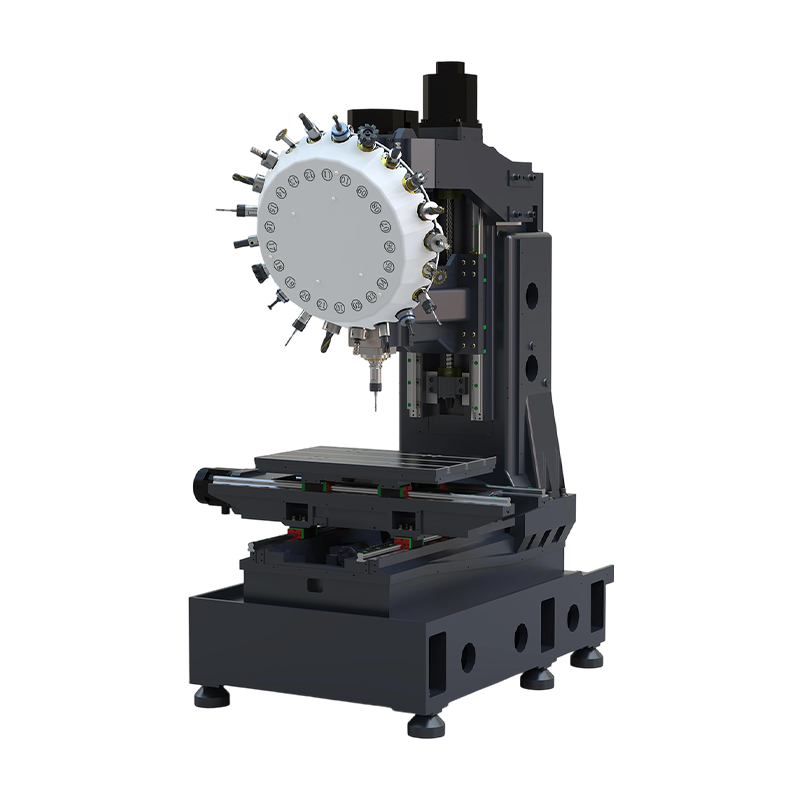

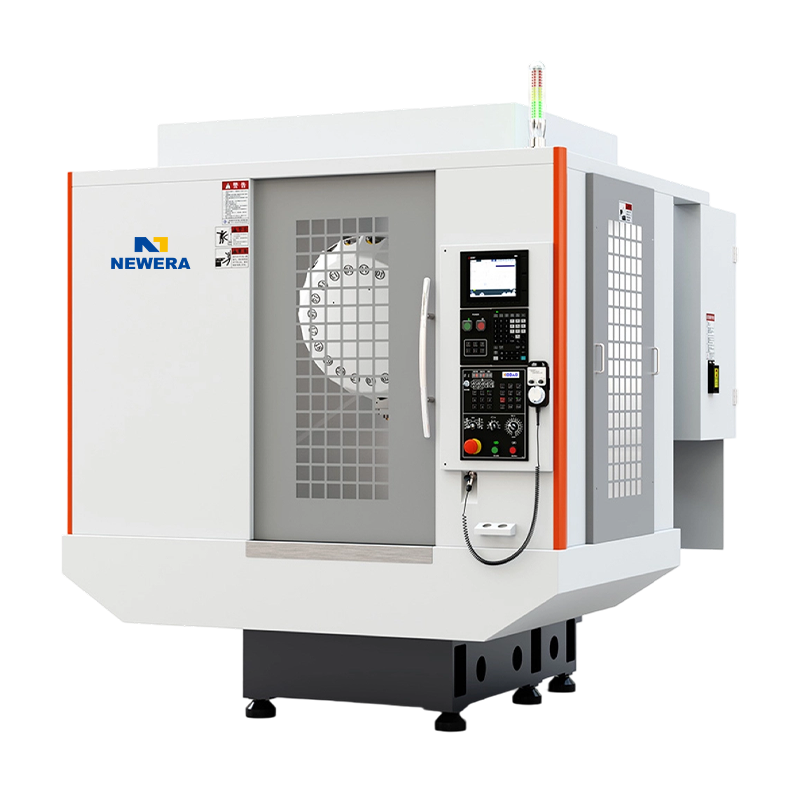

EXERCITATIO apparatus T640 Fabricatores, Societas - Nantong New Era Technology Co., Ltd

CNC EDM nobis Conventional EDM: Imperium, Cura, Setup, ac Pretium Differentiae -2026 -11-04

Duae machinae morientes mersae iuxta eandem tabulam sedere possunt, eadem generante scrinio et simili vestigio, et adhuc in usu quotidiano instrumenta prorsus diversa sunt. Discrimen decretorium...

How Does EDM Machining Work? Scintilla Gap, Dielectric et Physicorum Dimittite -2026 -10-28

A 0,3 mm intra angulum in fundo 58 HRC H13 insertum mori punctum est ubi milling optionis esse desinit. Radius angulus minor est omni dromone practico, materia carbidam extremum in uno saltu int...

CNC Wire Cut EDM Machina: Specs, Sumptus ac Rector pro Mold officinae -2026 -10-21

D2 mor- tuntur indurata, ferrum carbide, extrusio moriuntur inserta — semel hae partes exeunt de fornace ad 58 ad 62 HRC, super molendo et stridor tardus fit et pretiosus. A CNC filum incisum ED...

EDM technologia: Applications, Electio Criteria, ac Gubernatio Practica -2026 -10-20

Picture a hardened H13 mold insert with a 0.8 mm deep rib and a square internal corner that no end mill can reach. The cavity has already been milled, but the last details need a process that cu...

EDM solvendi Machining Explicata: Processus, Tooling et Machina Electio -2026 -10-14

A 0,6 mm intra angulum in forma durata H13 inserta copiae molendini minuti in 52 HRC chalybe, et hoc est officium instrumenti-fractionis magis declinare tabernae. EDM emissi machinationem in cir...

Model	Unitas	T640
Travel (X/Y/Z)	mm	600/400/300
Opus mensam dimensionem	mm	700x420
T-slot	mm	3-14Tx125
Maximum onus	kg	250
Procul ab fuso nasus ad mensam	mm	150-450
Distantiae a centro fusi ad columnam verticalem	mm	420
Fusum
Taper		BT30
Celeritas rotating	rpm	20000 (Libitum 12000/24000)
Motor potentia	kW	3.7/5.5
Tres-axis
FANUC Motor potentia (X/Y/Z)	kW	2.5/2.5/2.7
MITSUBISHI Motor potentia (X/Y/Z)	kW	1.5/1.5/3.0
Rail specificationem (X / Y / Z)	mm	30/30/30
Numerus iunctae (X/Y/Z)	Pc	38081
Screw magnitudine (X/Y/Z)	mm	JIS C3:Φ28/28/32
G01 Feed rate	mm/min	1-12000
G01 Celeri velocitate percurre (X/Y/Z)	m/min	60/60/48
Positional accuracy	mm	±0.005/300
Repetita positioning accuracy	mm	±0.003/300
Instrumentum magazine
Brachium genus inserta (servo-genus)	pce.	21(Libitum 26)
Tempus mutantur instrumentum dromonem	s	0.8
Max instrumentum longum	mm	200
Diameter max instrumentum (omnia instrumenta foramina plena sunt instrumentorum)	mm	60
Diameter instrumentum max (instrumentum foramina vacua sunt in dextra laevaque)	mm	80
Maximum pondus instrumentum dromonem	kg	2
Other
Apparatus pondus	kg	3000
Potestas demanda	kVA	15
Pressura demanda	kgf/cm²	6
Forma dimensionis	mm	1800x2440x2360
